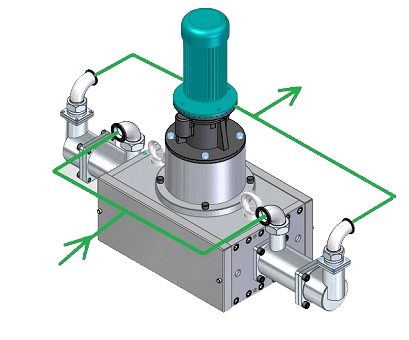

Electric bellows pump
Electric bellows pump
Regular price
€10.000,00 EUR
Regular price
Sale price
€10.000,00 EUR
Unit price
/
per
Taxes included.
Couldn't load pickup availability
The electric bellows pump saves more than 60% of energy compared to pneumatic pumps. Energy-saving and pulsation-free electric bellows pump for precise flow and pressure control in demanding applications.
Features
- More than 60% energy savings compared to pneumatic pumps
- No external leaks through seals thanks to the bellows design
- Low pulsation due to innovative cam design or eliminated pulsation with tandem pumps
- Low shear due to four-valve design
- Precise flow and pressure control through PLC-controlled PID function with closed loop control
- Elimination of pulsations by adding a tandem pump and relocating the switching positions in the modular design
Specifications
| parameter | Value |
|---|---|
| Output per cycle | 0.75 liters |
| Maximum flow rate | 18.75 l/min at 25 cycles/min |
| Maximum color printing | 18 bars |
| Color output size | 1 1/4” BSP |
| Color input size | 1 1/2” BSP |
| Moistened parts | SS 304 |
| Power source | 3 phases 415~440 V, 50 Hz |
| Engine specification | 2 HP engine |
| Weight | 280 kg (approx.) |
| Size | 1210 x 400 x 900 |
