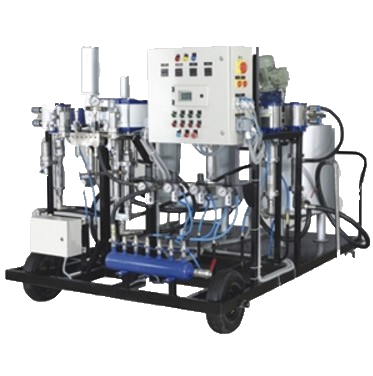

Cheetah
Cheetah
Regular price
€10.000,00 EUR
Regular price
Sale price
€10.000,00 EUR
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Designed for demanding working conditions, ideal for high viscosity, solvent-free or low solvent coatings, semi-solid and marine coatings.
Features
- Pneumatically controlled air motor
- High production rate
- Stainless steel hydraulic housing
- Automatic flow valve for remote control
- Electric direct or oil jacket heating
- Easy to handle, mounted on a robust chassis
- Fixed or variable mixing ratio
- Ice-free air motor
- Modular design for different mixing ratios
- Online monitoring of the mixing ratio
Optional
- PLC-based monitoring system with digital display and automatic flushing
- High-viscosity feed pump with piston or barrel press
- Hydraulic drive for high flow rates at high pressure
Specifications
| type | 2k-350/79X79 X 150 | 2k-350/110X110X110 | 2k-350/110X110X79 | 2k-350/110X110X58 |
|---|---|---|---|---|
| Mixing ratio* | 1:1 | 2:1 | 3:1 | 4:1 |
| Transfer ratio* | 70:1 | 65:1 | 70:1 | 75:1 |
| Output per cycle | 300 cc | 340 cc | 300 cc | 280 cc |
| Air motor piston Φ | 350 mm | 350 mm | 350 mm | 350 mm |
| Lifting height | 120 mm | 120 mm | 120 mm | 120 mm |
| Recommended spray volume at 25 cycles per minute | 7.5 liters | 8.5 liters | 7.5 liters | 7.0 liters |
| Max. air inlet pressure | 6 bar | 6 bar | 6 bar | 6 bar |
| Max. outlet pressure | 420 bar | 390 bar | 420 bar | 450 bar |
| Air consumption N l/min | 6800 | 6800 | 6800 | 6800 |
